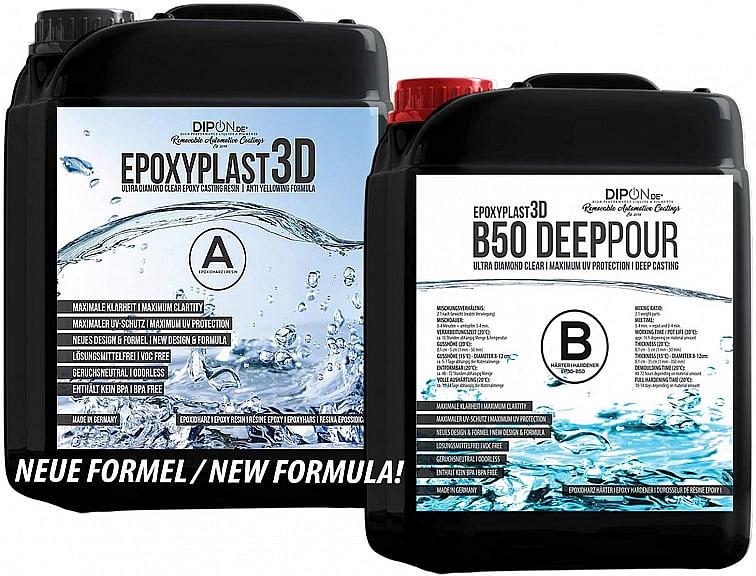

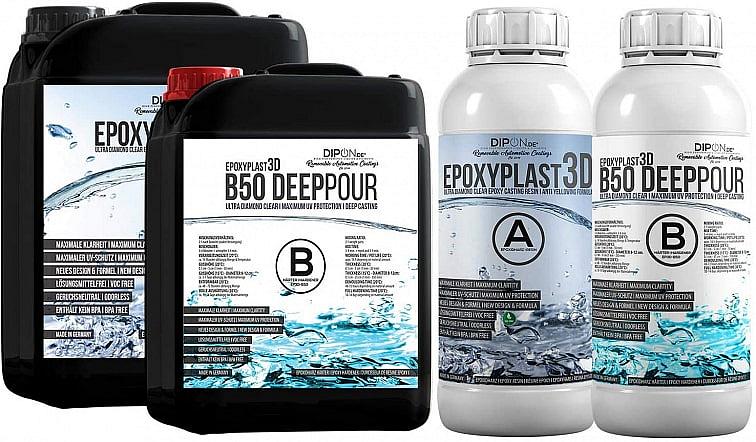

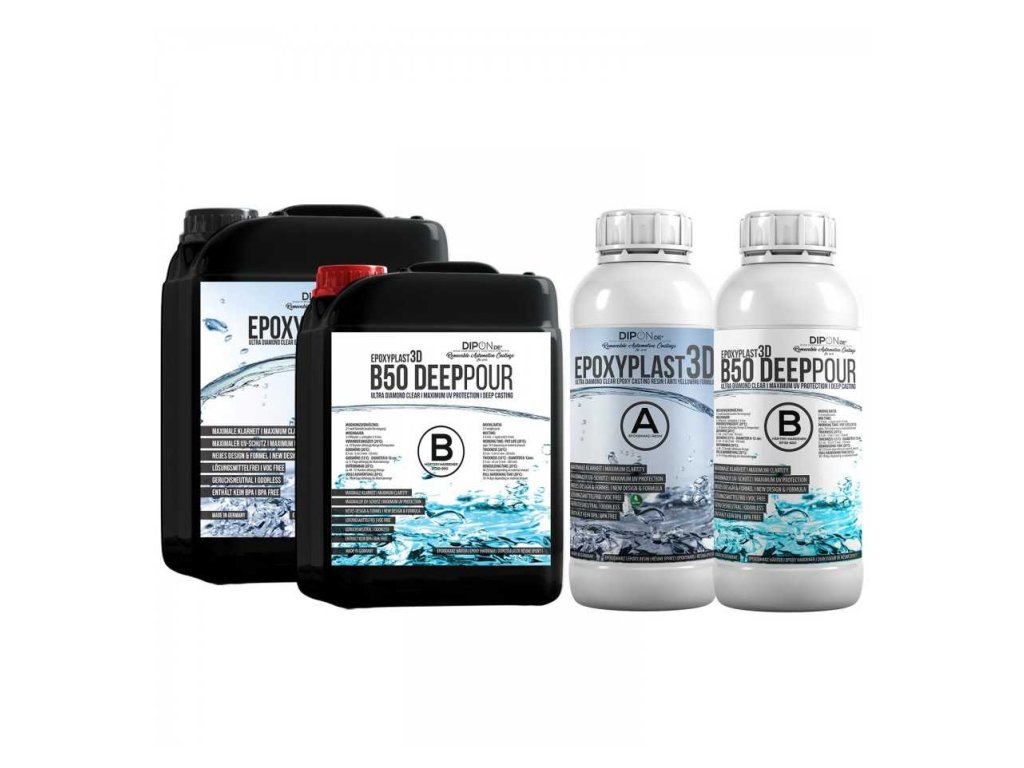

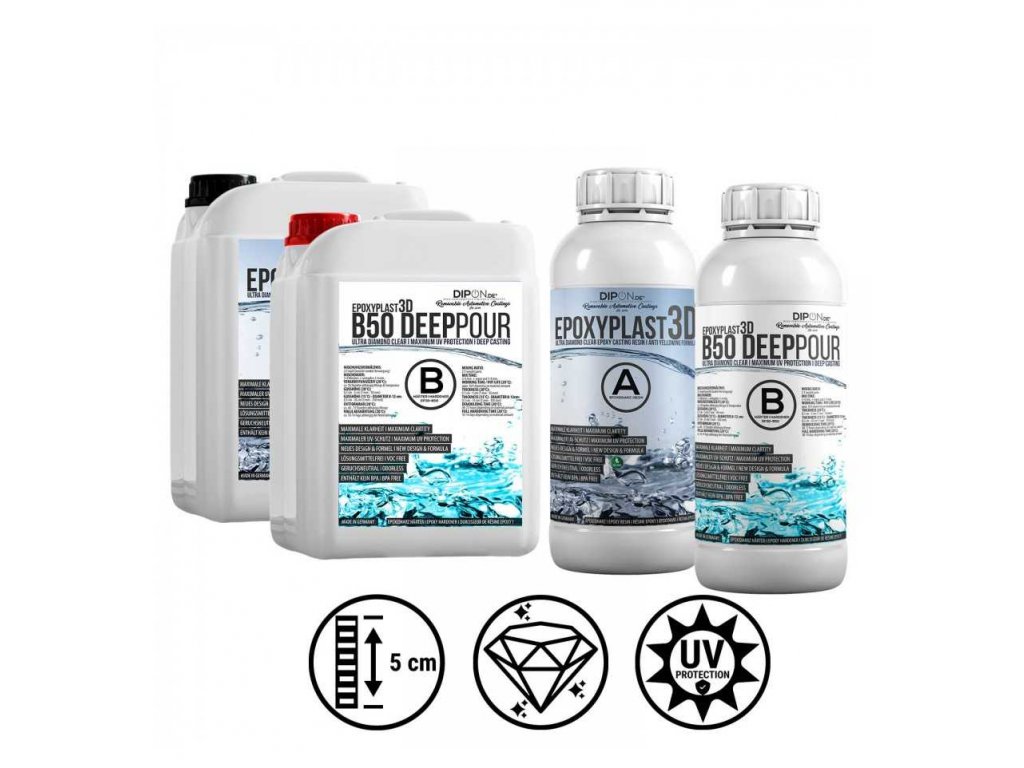

DIPON Epoxyplast 3D B50 Deep Pour 0,75 kg - Clear Epoxy Resin for the Production of Tables, Maximum Casting Thickness 5 cm

Code: 6459/000750

1 rating

Brand: DIPON

22,08 € –9 %

DIPON Epoxyplast 3D B50 - Křišťálově čirá epoxidová pryskyřice

Epoxyplast 3D B50 - Křišťálově čirá epoxidová pryskyřice

DIPON Epoxyplast 3D B50 Deep Pour 0,75 kg - Clear Epoxy Resin for the Production of Tables, Maximum Casting Thickness 5 cm

22,08 € –9 % 20,02 € 16,55 € excl. VAT 26,69 € / 1 kg

Delivery to: 01/12/2025 Delivery options
The item has been sold out…

Clear casting epoxy resin for medium casts, casting thickness 0.1 - 5 cm (at max 20 °C), cures from 15 °C, hardness 81 SHORE D, VOC 0 g/L, mixing ratio by weight 2:1, can be sanded in 4 - 6 days

Technical Data Sheet

Detailed information

Show all related products

Product detailed description

EpoxyPlast 3D B50 Deep Pour

EpoxyPlast 3D B50 Deep Pour is a premium epoxy resin designed for applications requiring crystal-clear and deep casting up to 5 cm. Its low viscosity makes it an ideal choice for projects such as River Tables, furniture production, and other large-scale applications where precision and aesthetic perfection are crucial. Advanced UV stabilization protects your creations from yellowing, ensuring long-term clarity and durability.

This resin provides smooth surfaces without bubbles, thanks to its self-degassing technology. With a mixing ratio of 2:1 by weight, it offers flexibility for various projects. For applications requiring higher hardness, a mixing ratio of 100:40 can be used. Its eco-friendly formulation contains over 70% biodegradable components and is free of substances listed under sVHC or CoRAP.

With a working time of approximately 180 minutes at 23 °C, EpoxyPlast 3D B50 Deep Pour enables precise work even for larger volumes. The recommended casting thickness of 2–5 cm makes this resin an ideal solution for professional craftsmen and creative artists. The product is food-safe after full curing, making it suitable for kitchen countertops, tables, and decorations.

General characteristics

Crystallization-stable formulation
Particularly slow heat development
Long processing and curing time
Low-viscosity formulation for optimum flow
Contains UV absorbers and HALS stabilizers
Ideal for large-volume potting, such as river tables
High resistance to carbamates
Highly transparent and glass-like curing
Excellent self-deaerating properties
Bio-based ingredients in the epoxy resin
Free of CoRAP and sVHC substances
State-of-the-art, low-yellowing base amines and additives
0% VOC content (EU standard)
Outstanding substrate wetting ability
Very low shrinkage (<0.1%)
Compatible with materials like wood, concrete, glass, metal, glass and carbon fiber mesh, natural stone, quartz sand, marble, granite

Technical Data

Dynamic viscosity (resin A, 23 °C): 550 ± 50 mPa·s

Dynamic viscosity (hardener B, 23 °C): 75 ± 50 mPa·s

Processing time (23 °C, 500 grams, 90 mm): approximately 180 minutes (23 °C - 40 °C)

Recommended material temperature (A+B): minimum 20 °C, ideally 23 °C

Recommended ambient temperature: minimum 10 °C, ideally 12–19 °C

Next layer pourable after: approximately 28–36 hours (20 °C, 50 mm)

Sandable after: approximately 7–10 days (50 mm, 20 °C RT)

Recommended minimum casting height: 2 cm (20 mm)

Hardness after 7 days (23 °C): Shore D81

Heat resistance: approximately 65 °C

Maximum exotherm (tTmax, 23 °C, 500 grams, 90 mm): approximately 360 minutes

Mixing time: 3–4 minutes + repotting and an additional 3–4 minutes for a homogeneous mixture

Mixing ratio: 2:1 by weight or 100:40 by weight for higher strength

Recommended casting height (20 °C): 2.0 cm – 5.0 cm (20–50 mm)

Demoldable after (23 °C): (50 mm) approximately 72–96 hours

Minimum mixing quantity: recommended 120 grams (A + B)

Minimum casting height: recommended 20 mm

Areas of application

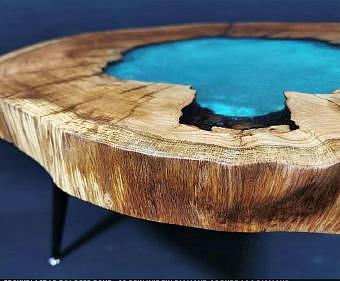

Ideal for large-format projects: EpoxyPlast 3D B50 Deep Pour is specifically designed for the production of impressive river tables and for use in large silicone molds.
Excellent for furniture: It allows potting heights from 20 mm to 50 mm at 20°C.
Safe for food: Free from sVHC or CoRAP substances. Safe for contact with food after complete curing.
Pours higher than 50 mm: Higher casting quantities are possible depending on the material amount and ambient temperature, provided it is well below 20°C.

DIPON Epoxyplast 3D B50 Deep Pour 0,75 kg - Čirá epoxidová pryskyřice na výrobu stolů, maximální síla odlitku 5 cm

UV resistant

The unique formulation offers excellent UV resistance. Resistant to yellowing over time.

Solid castings up to 5 cm

It enables casting of massive castings up to 5 cm thick (at 20°C).

Processing time up to 3 hours

The long processing time of up to 3 hours provides sufficient time for mixing, pigmentation and de-bubbling of the mixture.

Cures at temperatures from 10 °C

It cures at low temperatures as low as 10 °C, which is appreciated by everyone, especially in the winter months, when heating production areas is costly.

What is EpoxyPlast 3D?

EpoxyPlast 3D was developed in 2019 as a self-venting system that is easy to use and covers a wide range of applications, especially in the artistic field.
Since its launch, it has become a popular choice among users, particularly EpoxyPlast 3D B20 Jewel Cast, which has been used by more than 100,000 users since 2019. Additionally, the well-known thick-film systems, such as EpoxyPlast 3D B50 Deep Pour and EpoxyPlast 3D B100 Ultra Pour – the first systems in Germany capable of casting up to 10 cm in depth – have also proven highly effective.
These epoxy systems have been applied hundreds of thousands of times with outstanding results, demonstrating their reliability and ability to create perfect surfaces for demanding projects.

Typ	Dyn. viskozita 23 °C (mPas)	**Zpracovatelnost: 200g, 23 °C - 40 °C	Max. síla odlitku	Použití	UV odolnost
EpoxyPlast 3D B20 Jewel Cast	800 ± 50	cca 55 min	0,1 mm - 20 mm	Art & Vložení	Excelentní
EpoxyPlast 3D B50 Deep Pour	75 ± 25	cca 180 min 500 gramů, 5cm**	20 mm - 50 mm	Zalévání silných odlitků	Excelentní
EpoxyPlast 3D B100 Ultra Pour	50 ± 25	cca 240 min 500 gramů, 9cm**	30 mm - 100 mm	Zalévání silných odlitků	Excelentní

*Dynamická viskozita se měří při 23°C. Snížení teploty materiálu je doprovázeno neúměrným zvýšením dyn. viskozity. To je eminentně důležité, zejména pokud jde o samoodvzdušňování.
**Doba zpracování je uvedena pro směs 200 gramů v mixovací nádobě (průměr 5 cm). Doba zpracování = teplota materiálu 23°C -> 40°C = zdvojnásobení počáteční viskozity. Čas na maximální exotermickou teplotu (tTmax) je obvykle dvojnásobkem doby zpracování.

EpoxyPlast 3D Složka A - epoxidová pryskyřice pro všechna tvrdila EpoxyPlast 3D - (580 mPa*s ± 50, 23°C)
EpoxyPlast 3D B20 Jewel Cast - Nízká viskozita, zpracovatelnost cca 55 min, pro drobné odlitky.
EpoxyPlast 3D B50 Deep Pour- Nízká viskozita, pro velké tlustovrstvé odlitky, např. pro říční stoly, výrobu lamp, větší odlitky v jednom lití.
EpoxyPlast 3D B100 Ultra Pour - Nízká viskozita, pro velmi velké tlustovrstvé odlitky, např. pro říční stoly, výrobu lamp.

Application and Usage

Check the ambient temperature, as it's the most critical parameter alongside the casting volume. Successful application depends on room temperature and the amount/volume of the resin and hardener mix used. An excessively high room temperature can lead to a very strong exothermic reaction, resulting in yellowing, cracking, and vapor formation in the mixture.
Before use, perform a preliminary test for material compatibility to be painted/poured.
The recommended procedure for the most accurate measurement of all components is by weight, precisely weighing in a 100:50 or 2:1 weight parts ratio based on component (A). Even a slight deviation results in extended or non-occurring hardening. Adding too much hardener increases the material's elasticity and decreases its SHORE D hardness. Excess of component A results in a permanently sticky film, non-reversible due to polyaddition. The maximum deviation in the tolerance range is 0.1%.
Adhere to the recommended mixing time of three to four minutes, then pour into a clean container and mix again for three to four minutes to achieve a maximally homogeneous mixture.
Use the mixing container only once. Follow the recommended maximum mixing speed for both components, which is 300 rpm, preventing or minimizing the formation of air pockets during mixing. Manual mixing is recommended for smaller quantities up to approx. 1 kg. Due to its extended work time, it degasses excellently. We recommend using Allway Tools Helix for mixing.
To prevent resin seepage due to the prolonged curing time, ensure complete sealing of the mold. Suitable for this is the DIPON polypropylene tape, which can be easily separated from the mold after hardening. Optionally, a release wax can be used.

Cleaning

For cleaning used applicators, use acetone or universal thinner. Once the epoxy resin hardens, it can only be removed by sanding. Cleaning immediately after use is recommended.

Important Note:

Mixing transport containers (bottles/cans) A (resin) and B (hardener) will result in incomplete hardening and the corresponding incorrect result. Always weigh both components precisely.
The higher the room temperature and the larger the mixed quantity, the faster the exothermic reaction.

Additional parameters

Category:	Epoxy Resins
Weight:	0.88 kg
EAN:	4063636027182
? Processing time:	Long Time
? Epoxy System Type:	Epoxyplast 3D B50
Color:	Clear, Highly transparent
Package weight:	0,75 Kg
Kontakt s potravinami:	Yes
Max thicknesses:	5 cm
? Max castable amount:	10 l
? UV Resistance:	Yes, Maximal
Type of use:	River Tables, Conference and side tables - middle, Serving / charcuterie boards, Lambs, Casting, Casting of Flowers
Casting Size:	Medium Casting
? Viscosity:	Low - Thin
Poměr míchání / Mixing ratio:	2 : 1 (A +B) hmotnostně
? Doba zpracovatelnosti:	2 - 3 h
? Čas gelace:	6 - 18 h
? Suchý na dotek:	24 - 36 h
? Doporučená okolní teplota / Recommended ambient temperature:	15 - 20 °C
? Hranice exhoterm:	38 °C
? Brusitelný / Sandable (20 °C, 50 mm):	7 dní
? Doporučené plné vytvrzení:	10 - 14 dní
Smrštění / Shrinkage:	Nízké (<0.1 %)
? Teplotní odolnost:	56 °C
Tvrdost:	81 SHORE D
Obsah VOC / VOC content:	0 %
? Viskozita:	295 - 315 CPS
Hustota:	1,07 g/cm3
