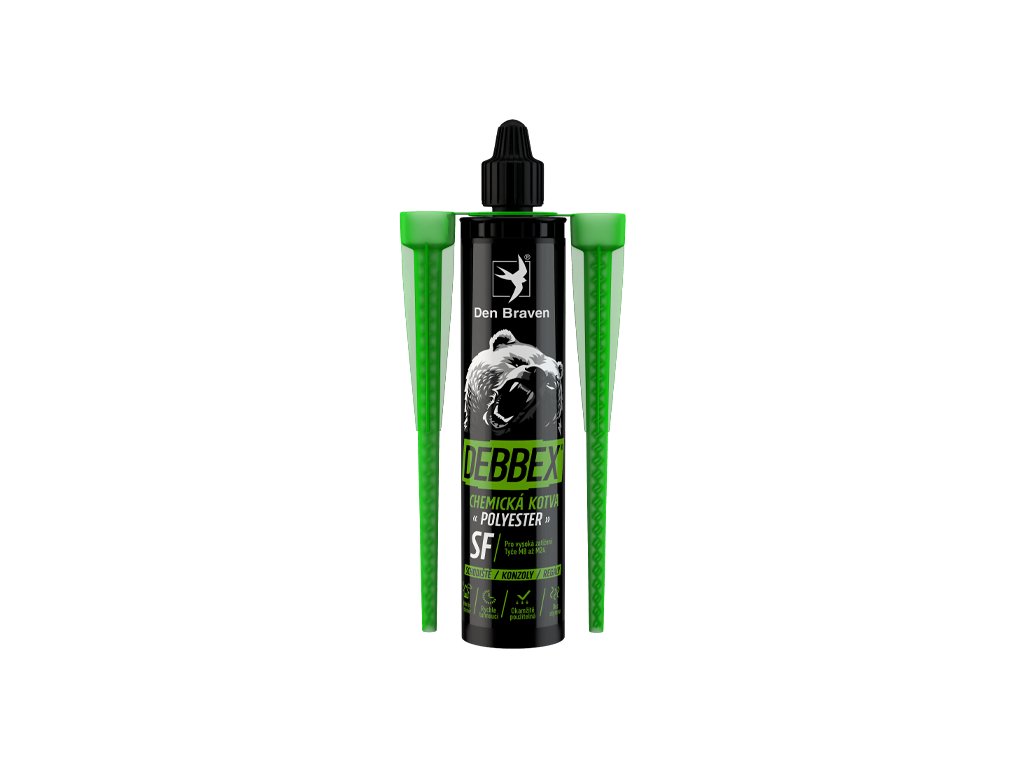

Den Braven Styrene-free chemical anchor POLYESTER SF, 300 ml, grey
Code: 74014BDRelated products
Product detailed description
Den Braven · Adhesives and sealants
Den Braven Styrene-free chemical anchor POLYESTER SF – universal, low-odour, for interior and exterior
Den Braven POLYESTER SF chemical anchor is a professional two-component, styrene-free anchoring mortar for fast, strong and reliable anchoring. Thanks to its very low odour, it is ideal for interiors, yet it also excels outdoors. It creates an extremely strong chemical bond without expansion stresses, allowing anchoring close to edges and in places where mechanical plugs fail. The anchor is suitable for concrete, solid and hollow masonry, blocks, stone or brick blocks.
Can also be used in flooded drill holesSubstrate application temperature –5 °C to +35 °CFor threaded rods M8 to M24ETA certification – verified quality and load capacity
Properties
Key features
- Styrene-free – very low odour, suitable for interiors
- High strength of anchored joints, no expansion stresses
- Fast setting for quick work and immediate stability
- Can also be used in flooded drill holes
- Versatile use – concrete, masonry, stone, hollow materials
- Substrate application temperature –5 °C to +35 °C
- For threaded rods M8 to M24
Technical data
Technical specifications
BaseStyrene-free polyester resin
Pack300 ml cartridge
ColourGrey
Area of useInterior and exterior
Application temperature–5 °C to +35 °C
Heat resistance after curingup to +80 °C
Suitable rod diametersM8 – M24
Application methodManual or electric application gun
PropertiesHigh load capacity, fast setting, very low odour
Manufacturer’s data.
- Anchoring TV brackets, shelves and consoles
- Installation of railing bases, posts, fences
- Fastening of awnings, canopies, pergolas
- Mounting of sanitary fittings, handrails, pipes, gutters
- Anchoring technical and sports equipment
- Fixing structural elements into concrete, masonry and hollow materials
Details
Solid materials
1
Drill a hole of the specified diameter
2
Clean the hole thoroughly – alternately with a brush and a blow pump
3
Extrude the first ~10 cm of the anchor outside the hole until the colour is uniformly grey.
4
Inject the anchor into the hole (1/3–1/2 of the volume)
5
Insert the threaded rod with a twisting motion
6
Wait for it to cure, then tighten
1
Drill and clean the hole as above
2
Insert a plastic or metal sleeve
3
Prepare the cartridge (again extrude the first 10 cm)
4
Fill the sleeve from the bottom up to the rim
5
Insert the rod with a twisting motion
6
Once cured, the anchor can be fully loaded
Details
What to watch out for
- The hole must be perfectly clean – otherwise the load capacity drops
- Use a manual or electric gun
- Do not use a pneumatic gun
- Observe the curing times according to temperature
- Always extrude the first few centimetres of the mix outside the hole
Additional parameters
| Category: | Chemical Anchors – Professional Fixing in Concrete, Brick and Stone Without Expansion |
|---|---|
| Weight: | 0.6 kg |
| EAN: | 8595100125736 |
| Colour: | Grey |
| ? Type: | Polyester |
| Suitable for: | Stone and concrete |
